Outdoor LCD Display
>
|
| Place of Origin | Guangdong, China |
| Brand Name | OEM Brand |
| Model Number | FSOD550-D15-PD |

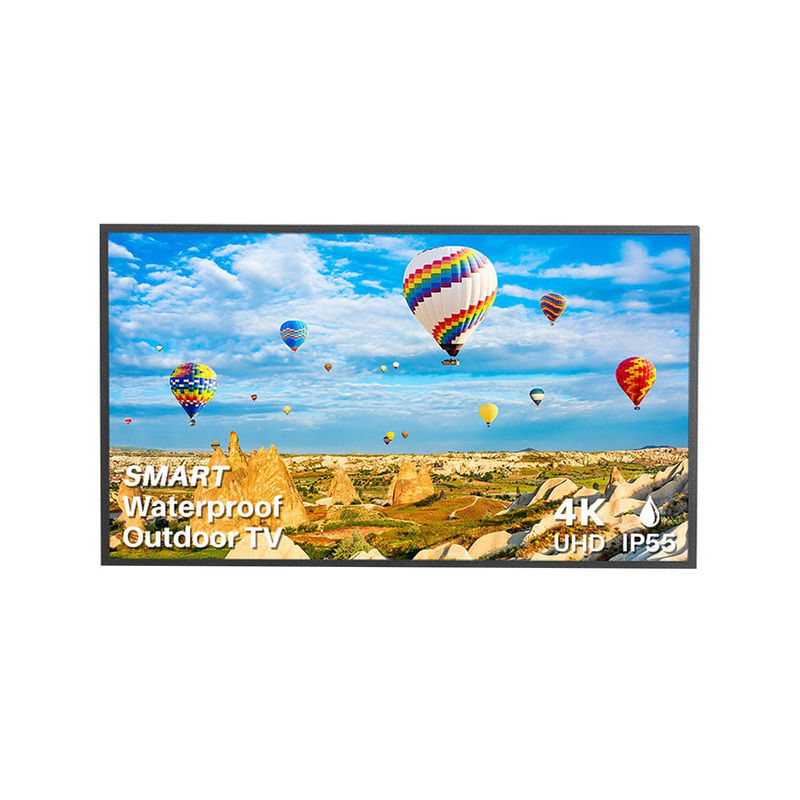

55inch IP66 waterproof sun direct high brightness full outdoor tv wall
Description
1. Energy-Efficient Performance
2. High brightness 1500nits sunlight readable
The OD series possess powerful brightness of 1500nits, providing clear and vivid picture quality
even under direct sunlight.
3. Industrial grade 110℃ high temperature resistant panel with wide viewing angle
4. IP56 protection level with intelligent temperature control cooling fan system
Each OD Series display undergoes rigorous IP56 ingress defense testing to ensure resistance
to dust, heat, moisture and other environmental variables that can impede operations. This
includes an integrated self-cooling system that keeps the OD Series displays running in
temperatures ranging from -30oC (-22oF) to 50oC (122oF).
Parameter
| Diagonal Size | 55 |
| Size Mearsure | 54.6" / 138.7cm |
| Resolution | 1920x1080 (16:9) |
| Pixel Pitch(mm) | 0.630 x 0.630 |
| Active Display Area(mm) | 1209.60(H) x 680.40(V) |
| Brightness(Typ.) | 1,500 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Viewing Angle(H/V) | 178/178 |
| Display Colors | 8 bit - 16.7M |
| Color Gamut | 72% |
| Operation Hour | 7*24 |
| Haze | 2% |
| Dynamic C/R | 100,000:1 |
| Speaker Type | N/A |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), |
| 50/60 Hz | |
| Max[W/h] | 298 |
| Dimension (mm) | 1281.2 x 752.0 x 95.5 mm |
| 1410 x 1000 x 260 mm | |
| Weight (kg) | 49.0kg |
| 78.0kg | |
| Mounting Hole | 1170 x 560 (Basic) |
| 1200 x 400 (VESA Bracket-et Option) | |
| Touch | Non touch |
| Application | Outdoor advertising TV |
| Operating Temperature | -30℃~ 50℃ |
| Humidity | 10~100% (Non-condensing) |
| IP Certificate | IP56 |
| Processor Coretex | Rockchip RK3288 Coretex A17 1.8GHz |
| Memory Interface | HYNIX DDR3 2GB |
| Storage | 8GB |
| Operating System | Android 7.1 |
| Multimedia Video Decoder |
MPEG-1/2/4, H.264, WMV,WKV,TS,FLV |
| JPEG, PNG, BMP, PNG,GIF | |
| MP3 |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of
delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI,
USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+tempera-
ture control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass
through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
